scroll down for chains files accessories


Fits the following chainsaws:

STIHL [BUT remember you need a 1/4 drive sprocket fitted]

HT103, HT133, MS150, MS150C-E, MS150T, MS151, MS151C-E, MS151T, MSA120C-B, MSA140C-B, MSA160C-B, MSA200C-B, MSA160, MSA160T, [1/4 drive sprocket comes as standard on these saws]

MSA161 C-B, MSA161T yes fits but you need an extra drive link – click here to find the adjusted bars here.

009, 010, 011, 012, 017, MS170, MS171, 018, MS180, MS181, 019, MS190, MS191, MS192, MS193, MS194, 020, MS200, MS201, 021, 022, MS210, MS211, 019T, MS190T, MS191T, MS192T, MS193T, MS194T, 020T, MS200T, MS201T, HT70, HT75, HT100, HT101, HT130, HT131, E140, E160, E180, MSE140, MSE141, MSE160, MSE160, MSE180, MSE190, MSE200, MSE210, MSE230 [1/4 DOES NOT come as standard on these saws – you’ll have to buy one and change the drive sprocket].

HUSQVARNA [MUST have 1/4 drive sprocet fitted]

16, 33, 34, 35, 36, 37, 38, 41, 120, 120i, 120 MkII, 130, 135, 135 MkII, 136, 137, 235, 236, 315, 316, 318, 320, 321, 333, 334, 335, 336, 338, 335XPT, 338XPT,

39, 40, 42, 44, 45, 49, 50, 51, 55, 57, 133, 134, 142, 154, 234, 235, 238, 240, 242, 246, 254, 257, 261, 262, 339, 340, 345XP, 346XP

Cannon bar code (starts) H5 or H6
GB bar code (starts) UHL
Oregon bar code (ends) A095
Sugihara bar code (starts) BC2, BC3

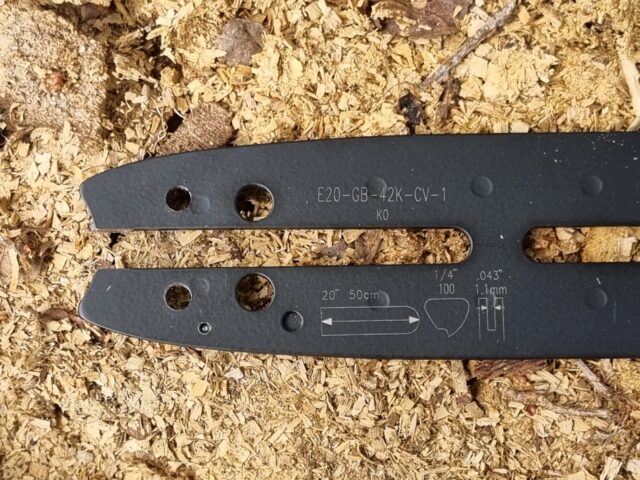

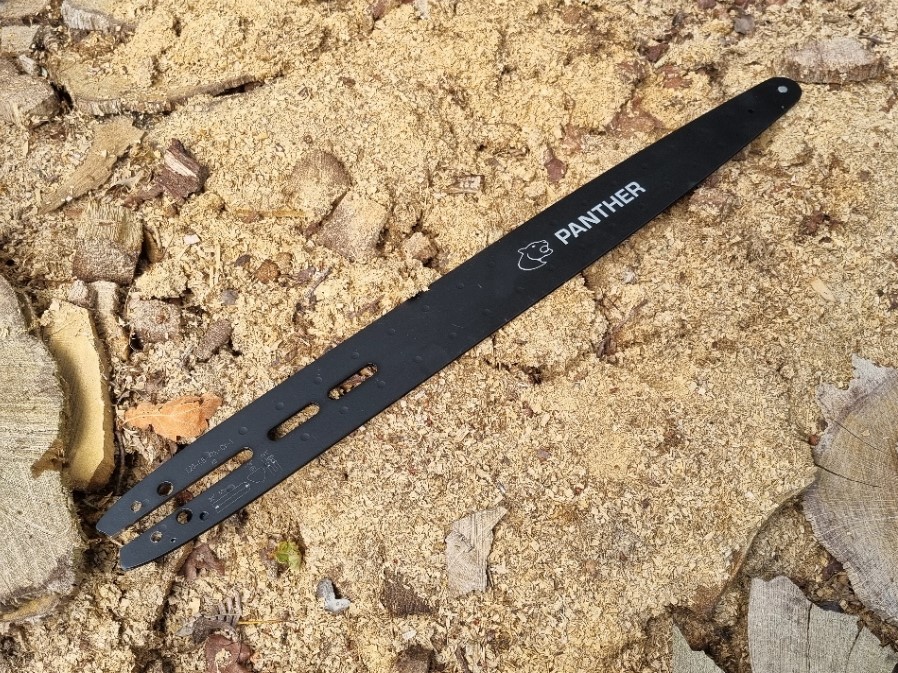

[BAR]20″[50cm] Panther Mini Modified for Stihl 1/4 .043 100 drive links

$75.18

Add to
Stock 13
Part Number E20-S-42K-CV-1
Weight 313g
Part Number E20-S-42K-CV-1 Categories: , , ,
Durability
Stiffness
Cut speed

MUST HAVE 1/4 SPROCKET FITTED. Panther Mini bars were specifically designed to run the game changing 1/4 .043 picco chain originally made by Stihl. Not only do they come in 8″/10″/12″/14″ for the Stihl MS150T, MS151T, MS150C-E, MS151C-E [others if 1/4 drive sprocket fitted]. 16″/18″/20″ that will fit all Stihl Group 1 saws. They also come in 8″/10″/12″/14″ for the Husqvarna T525, 535i XP, T535i XP, 536Li XP, T536Li XP, T540i. 16″/18″/20″ will fit all Husky Group 1 saws and 8″/10″/12″/14″ for Echo CS-2511WES and CS-2511TES as well as 16″/18″/20″ that will fit Echo Group 1 saws. Make sure your saw is fitted with a 1/4 drive sprocket. No one else currently has the range of bars for the smallest lightest saws in the world as the Panther Brand. No one.


The original 1/4 .043 picco chain was the Stihl 3670-71PM3 and this chain was ground breaking in it being the smoothest, thinnest and cleanest cutting chain on the market. There are now variations on this chain from other suppliers and all give the smoothest and most controlled cut you can get with a chainsaw. Panther mini bars with Panther mini chain allow you to take full advantage of this technology on the widest range of bars to be found anywhere.


This bar has been modified with additional mounting holes and oil hole for Stihl saws. Please note that as the bars have been modified by hand some minor imperfections may be visible. All bars have been individually test fitted to a Stihl saw prior to packing.


For Husky 535i, T535i, 536Li, T536i, 540i, T540i 1/4 sprocket click here

For Echo CS-2511WES, Echo CS-2511TES 1/4 sprocket click here

For Echo DCS-2500T, DCS-2500 1/4 sprocket click here

For Makita XCU03, XCU04, XCU06, DUC303, DUC353, DUC254s, DUC256s, DUC305s, DUC306s, Dolmar AS-1925, AS-3626 click here



Hey these 1/4 Sprockets don’t fit my saw – do you have any others?

Ans: I expect so – type the saw model and 1/4 sprocket into the top of the website – it may bring one up for you.
