[U1-NS] CCD-C1-12-43 Cannon Carving Dime Tip 12"[30cm] 1/4 .043[1.1mm] 64 drive links
CCD-C1-8-43 Cannon Carving Dime 8"[20cm] 1/4 .043 48 drive links
CCD-C1-8-43 Cannon Carving Dime 8"[20cm] 1/4 .043 48 drive links
CCD-C1-8-43 Cannon Carving Dime 8"[20cm] 1/4 .043 48 drive links
CCD-C1-8-43 Cannon Carving Dime 8"[20cm] 1/4 .043 48 drive links
CCD-C1-8-43 Cannon Carving Dime 8"[20cm] 1/4 .043 48 drive links
CCD-C1-8-43 Cannon Carving Dime 8"[20cm] 1/4 .043 48 drive links
CCD-C1-8-43 Cannon Carving Dime 8"[20cm] 1/4 .043 48 drive links

If you are looking to getting into chainsaw carving please read this post on arbtalk here.



Chainsaw carving is NOT like standard chainsaw use – ie. you can’t simply strap on a carving bar and do carving – we broke our first carving bar and shortly after broke the chainsaw… please learn by our mistakes! We did not follow the below..



  1. Chain is SLACK – no where near as tight as a standard bar, it should be hanging off the underside of the bar
  2. R7 bars running 1/4 .043 are SUPER delicate and only used for very fine detail work
  3. Carving is mainly done with the saw at half throttle [or thereabouts] – very different from standard work where most cuts are with full throttle
  4. Carving bars take longer to bed in – run them gently and ensure they don’t get hot for the first couple of tanks [which means carve for a minute – rest a minute – carve for a minute = rest for a minute… ]
  5. Take the heels of the cutter teeth to reduce friction [Stihl 3661-13RMS already has this feature] but click here to see more on this.

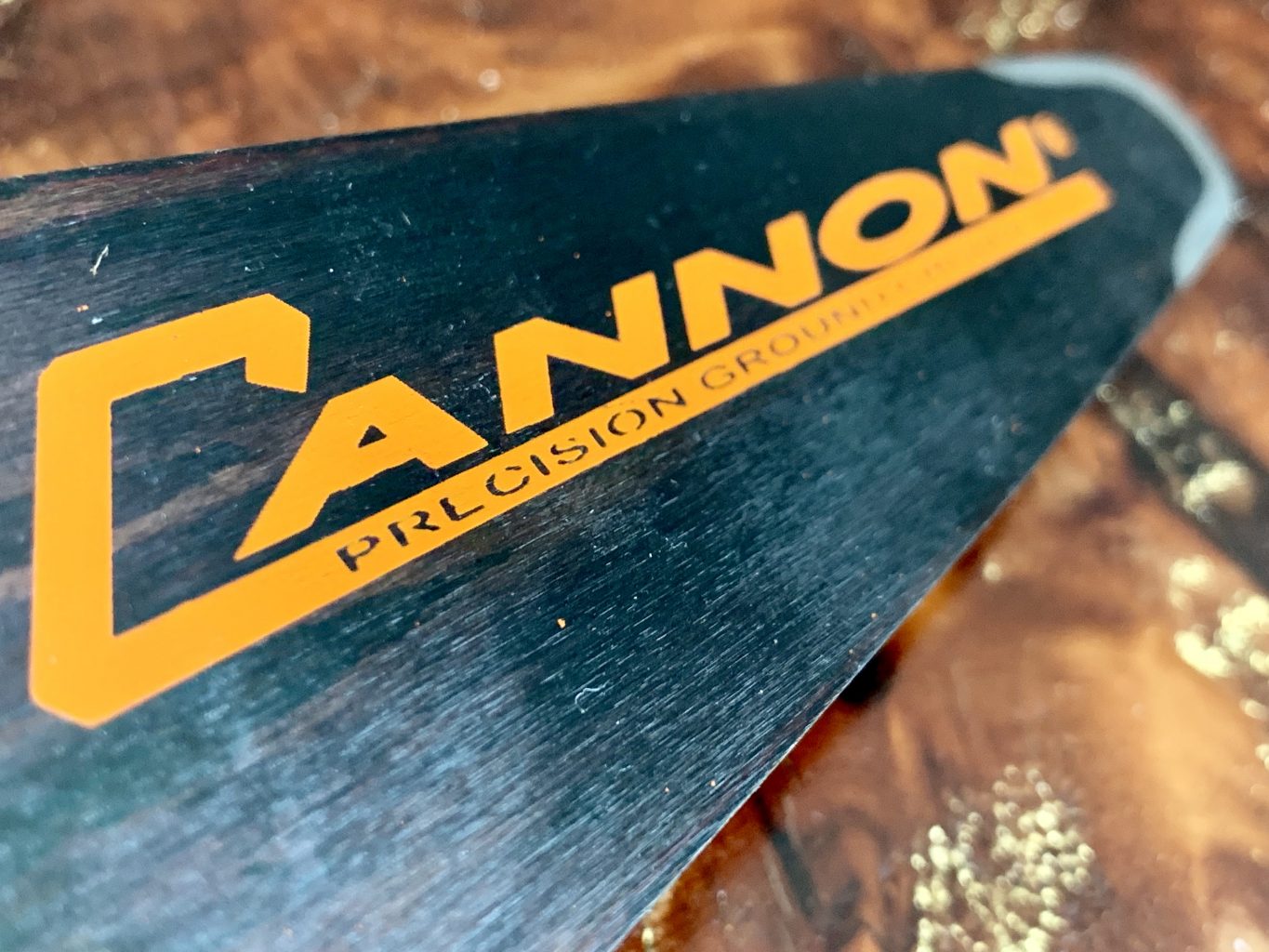

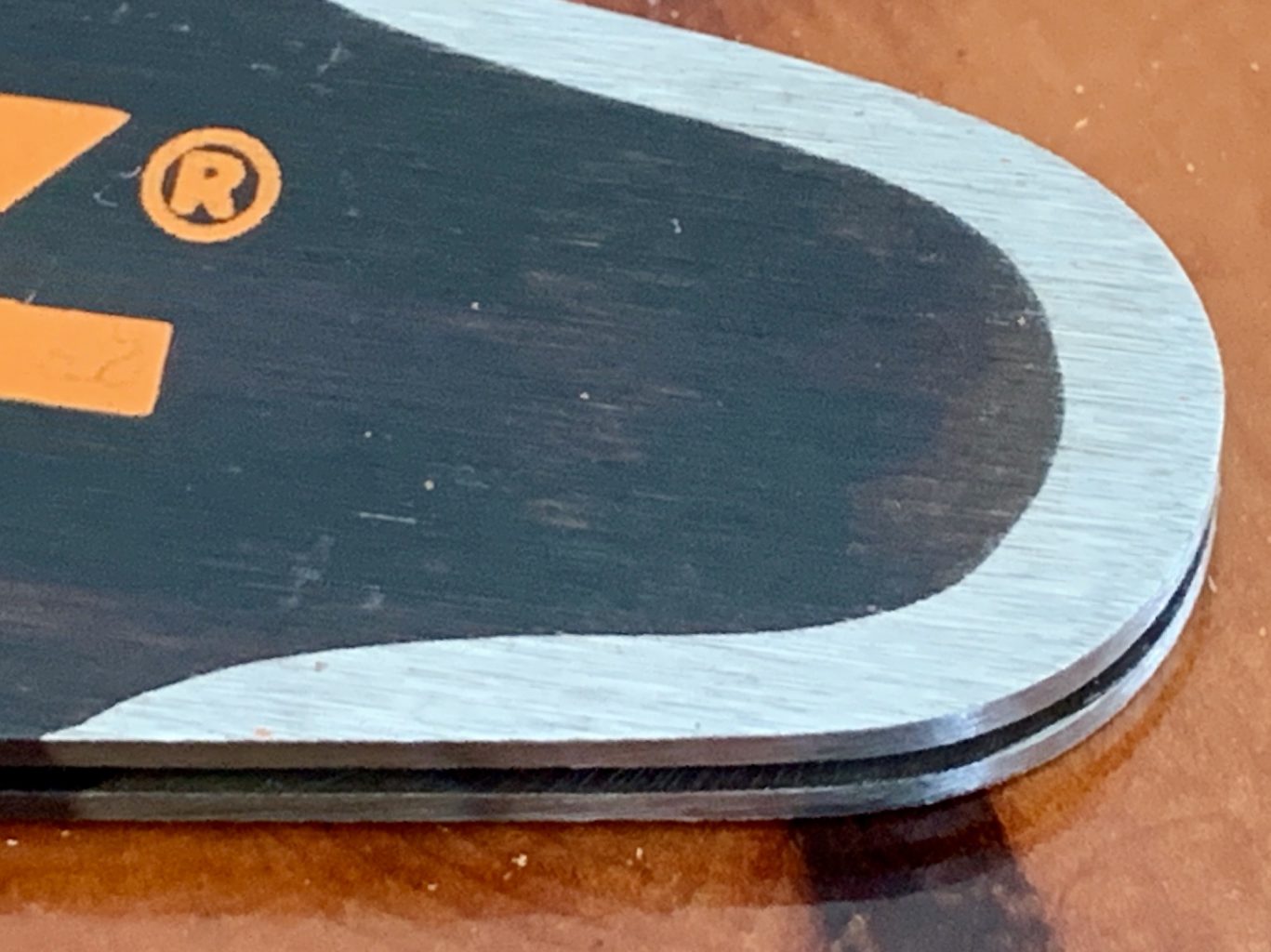

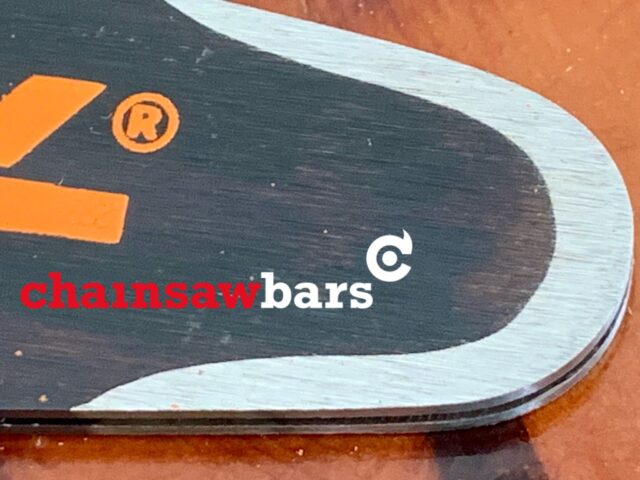

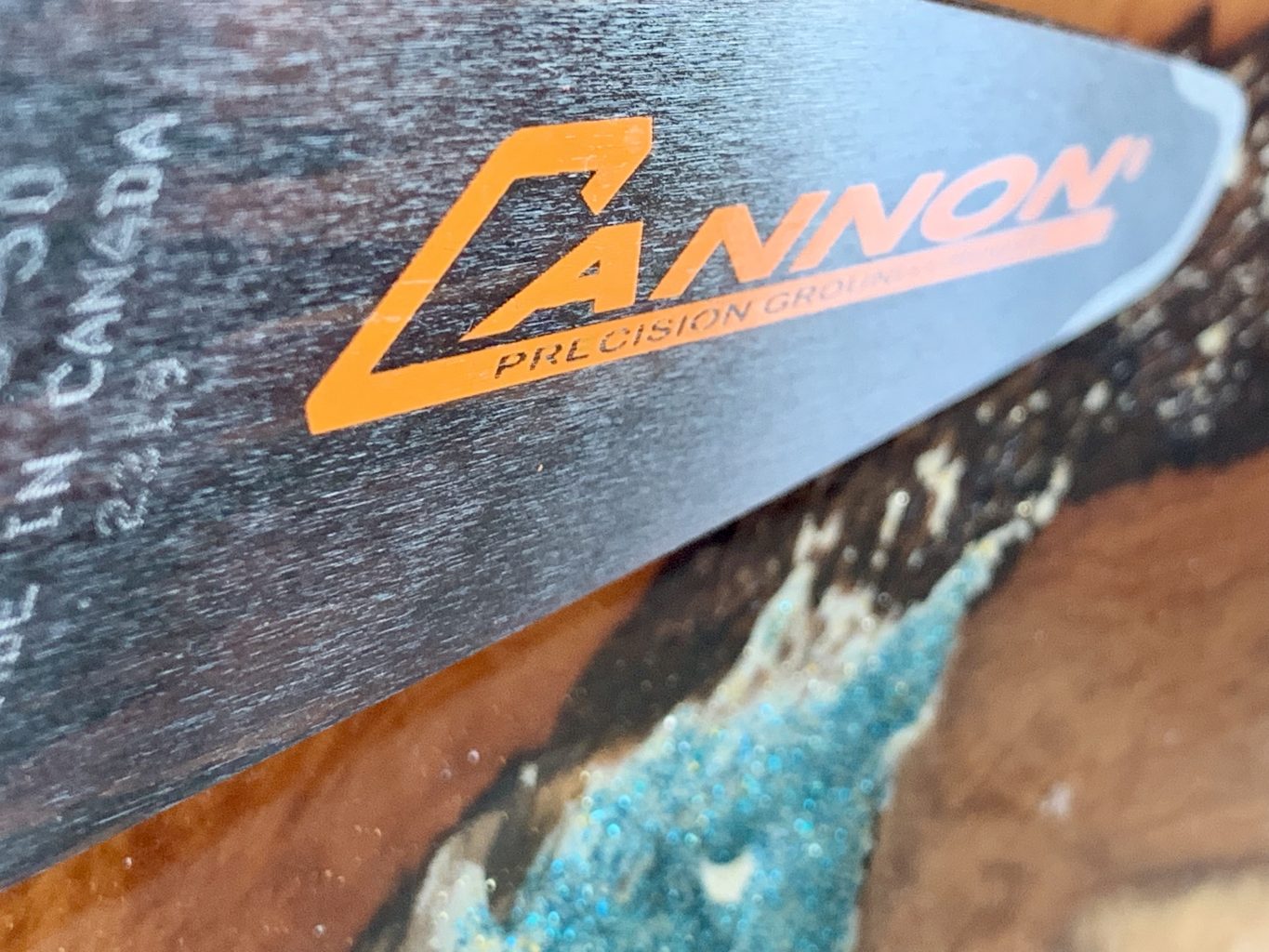

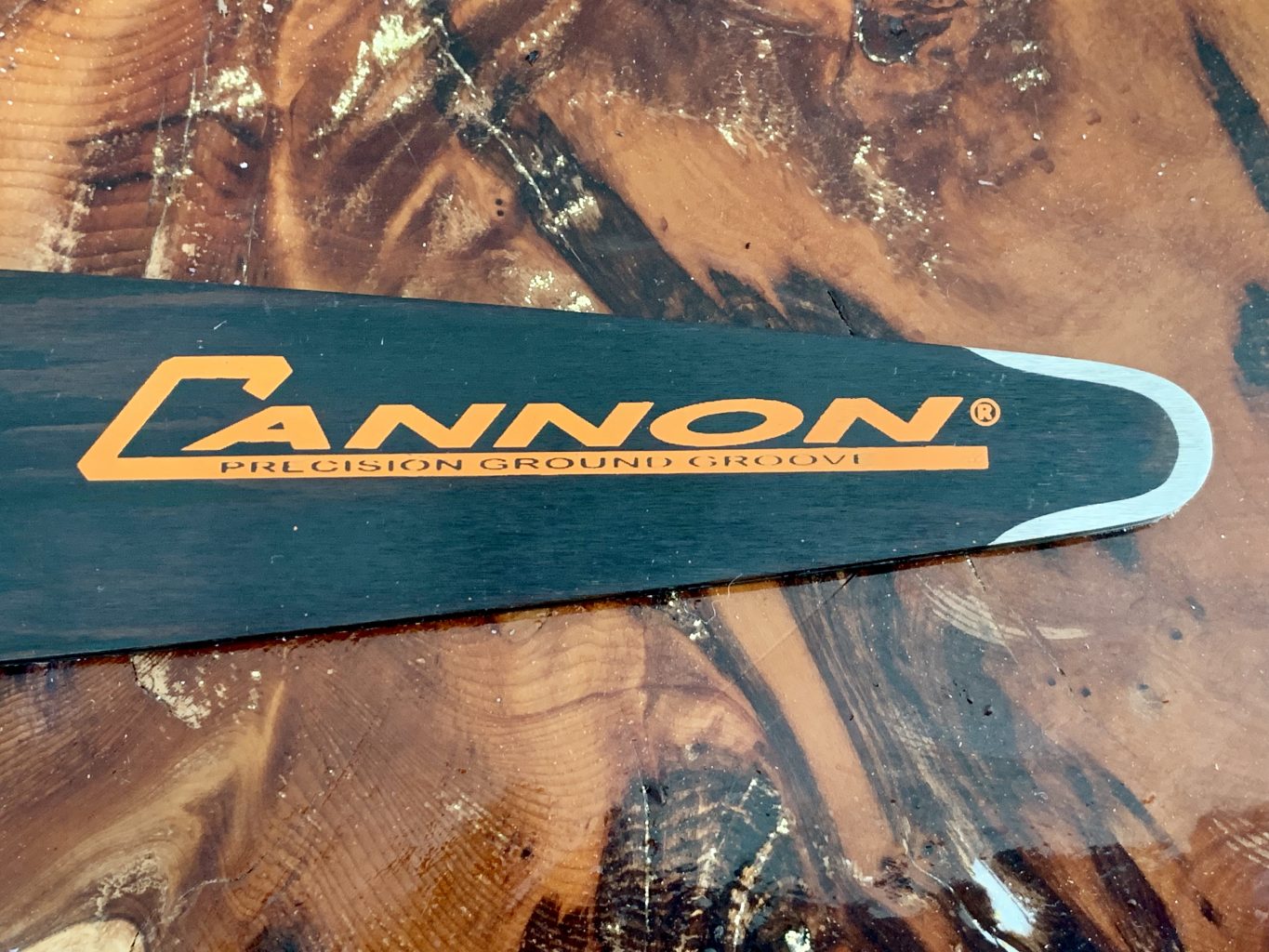

[U1-NS] CCD-C1-12-43 Cannon Carving Dime Tip 12″[30cm] 1/4 .043[1.1mm] 64 drive links

$187.47

Add to
Stock 15
Part Number CCD-C1-12-43
Weight 0.266g
Part Number CCD-C1-12-43 Categories: ,
Durability
Stiffness
Cut speed

Made from formulated, cold rolled, annealed, heat treated, surface ground, and stress relieved steel. This provides the best possible characteristics of wear resistance, strength, durability, straightness and elasticity.

The Cannon SuperBar power plus profile maximizes cutting power and chain speed while reducing damage from loose chain.

A precision ground groove to within .002″ means straighter cuts. Each groove is individually centered for even rail wear and superior durability. This increases rail strength and reduces damage from pinches. Also, if the chain rides exactly square to the rail, the result is smoother and straighter cutting. Milling marks, commonly found in the competitions bars, are eliminated. Thus, the groove is tighter and sloppy chain travel occurs much less.

Cannon SuperBars have flame tempered rails that are hardened to 5 points more than the tie straps on the chain for much longer bar life. This hardening penetrates deep to allow for multiple bar repairs and rebuilds. With the chain running straight and true, the result is a faster and smoother cut.

Product Highlights

    • Available in .325″, .375″ or .404″ pitch single rivet sprocket noses

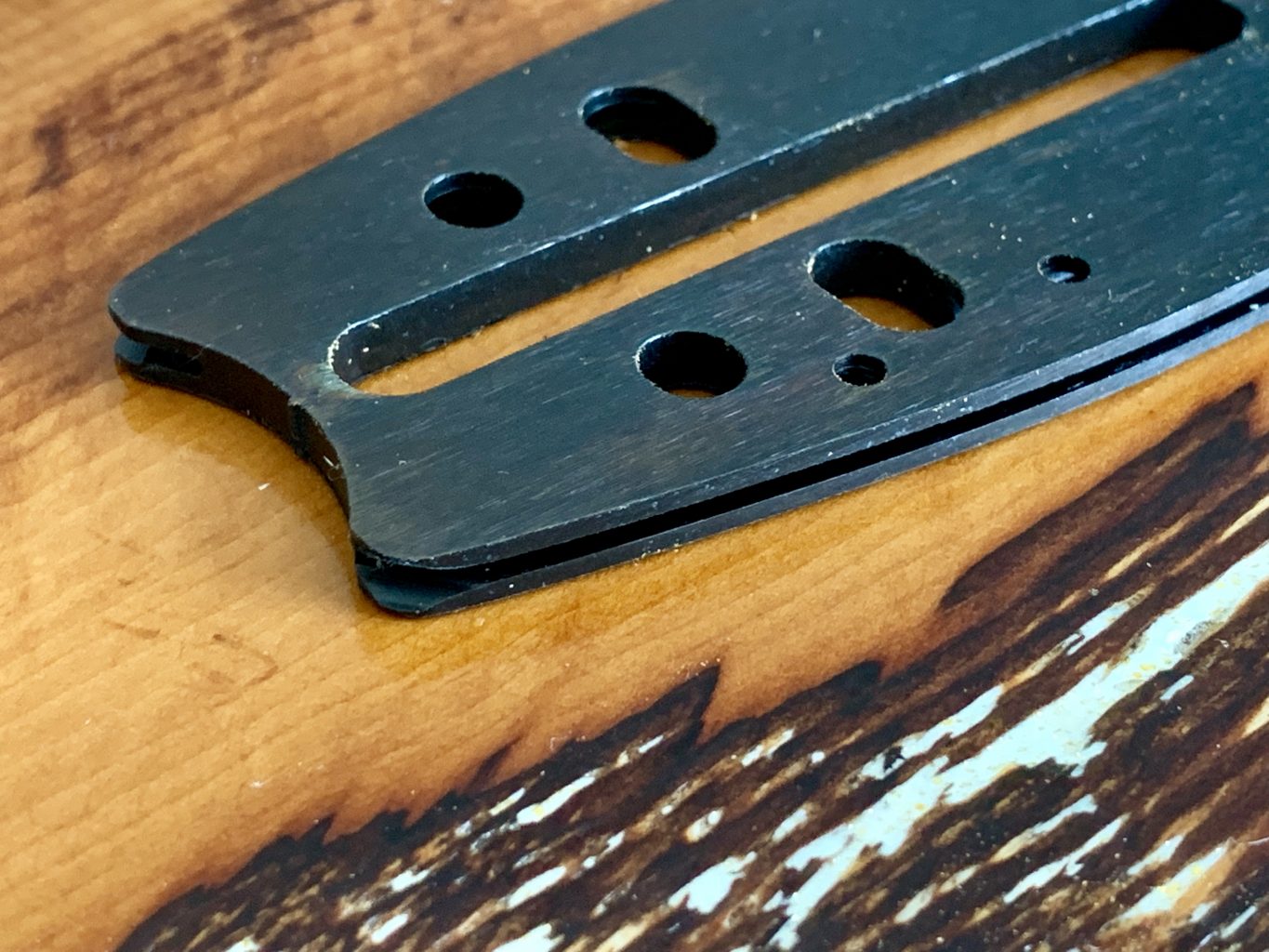

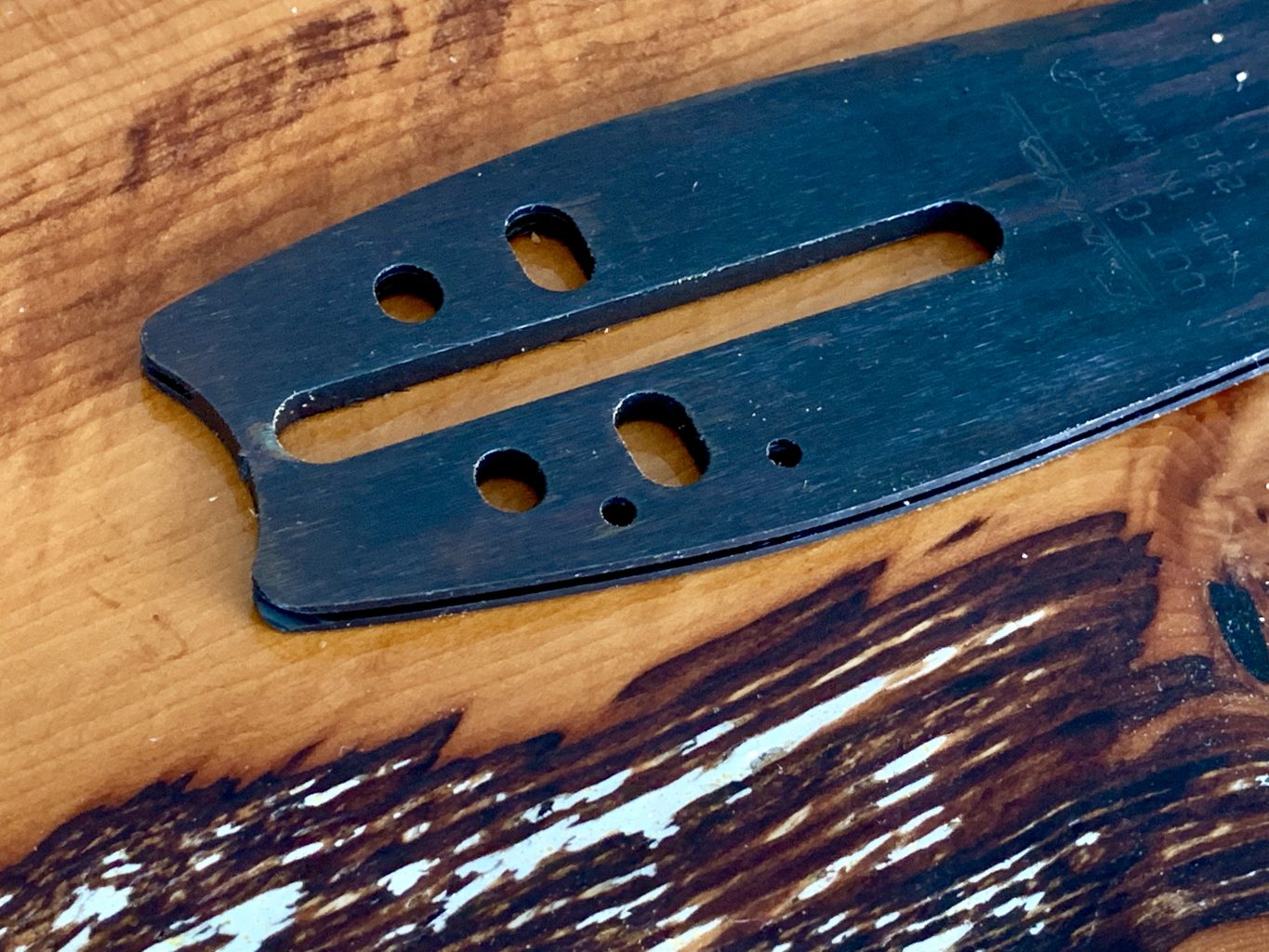

    • Motor mounts available for most makes and models of chainsaws
    • Precision squared and flame hardened rails
    • Stress relieved heel prevents cracking and reduces vibration
    • Available in .050, .058 or .063 gauge
    • Available in lengths from 16 to 84 inches

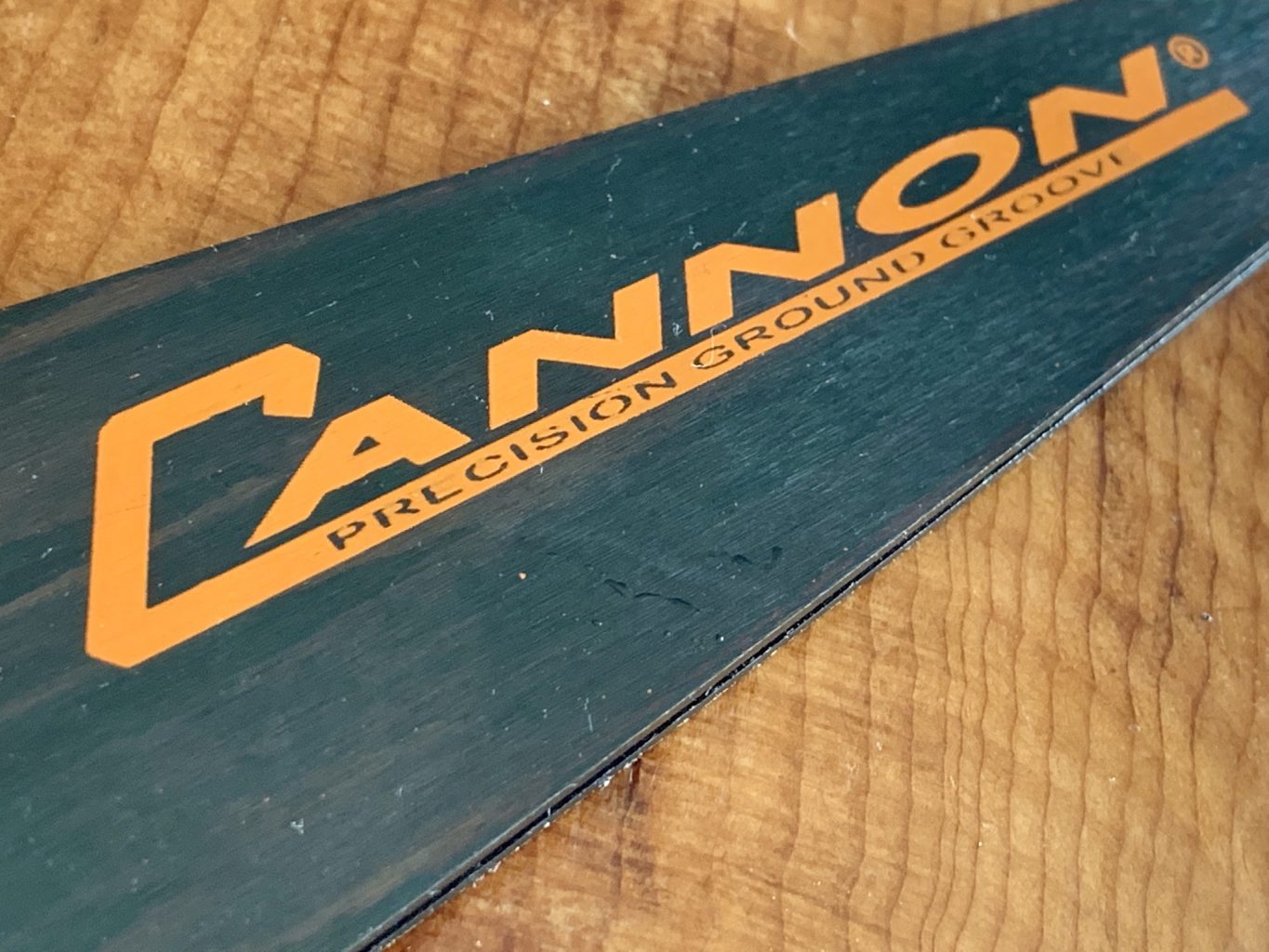

    • Precision ground groove



Checkout these videos to get more a flavour of how carving works



‘Cannon bars are awesome. I wish I’d have brought this small one much sooner’  Samantha Possinger

‘Well – they always seem to last the longest. Cannon are the best. This one’s going on my Stihl MS201’ Ant Beetlestone

‘All round reliability’  Lorraine Botterill

‘I’m currently replacing all my bars for Cannon bars…in my opinion they’re the best’ Rolande Urwin

Additional information

Weight 0.266 g

Chains that match

  • (P-1/4-043-MFS) Panther Mini Chain [Unguarded] Full Skip 1/4 .043 [1.1mm] [ONLY Available 80|88|100]

    Part Number P-1/4-043-MFS
    $0.45
    Add to

  • (P-1/4-043-MG) Panther Mini Chain [Guarded Version] 1/4 .043 [1.1mm]

    Part Number P-1/4-043-MG
    $0.45
    Add to

  • 24AP Oregon Mini Chain [Guarded] 1/4 .043 [1.1mm] [ONLY 28,56,57,64,65,72 Available]

    Part Number 24AP
    $0.45
    Add to

  • 3670-71PM3 Stihl Micro Chisel 1/4 .043[1.1mm]

    Part Number 36700000
    $0.56
    Add to

  • PMC Panther Mini Chain [Unguarded] 1/4 .043 [1.1mm]

    Part Number PMC-1/4-043
    $0.45
    Add to

  • 3.2mm[1/8″]Diamond Fine – Sharpens 1/4 .043[1.1mm] Chains [New Style]

    Part Number DS G18CHPF-ES
    $15.00
    Add to

  • 3.6mm[9/16″] Carbide Sharpening Burr – Sharpens 1/4 [Trial price]

    Part Number A3.6
    Original price was: $22.50.Current price is: $11.25. Out of Stock
  • Oregon wooden file handle

    534370 Oregon Wooden File Handle

    Part Number 534370
    $4.12
    Add to

  • 56050071000 Stihl Filing Pouch with 3.2mm File for 1/4″ Picco Chain

    Part Number 56050071000
    $50.24
    Add to
  • Stihl file holder and file 3.2mm

    56057504300 Stihl File Holder File 3.2mm[1/8″] Sharpens 1/4 .043 Chains

    Part Number 56057504300
    $16.78
    Add to
  • Stihl wooden file handle

    8114907860 Stihl Wooden File Handle

    Part Number 08114907860
    $4.24
    Add to
  • LC10000-03-18 3.2mm(1/8") Chainsaw Files x12

    Vallorbe 3.2mm[1/8″] Chainsaw Files x12 – 1/4 .043 Chains

    Part Number LC10000-03-18
    $37.12
    Add to
  • Vallorbe plastic file handle with file angles

    Vallorbe Plastic File Handle with File Angles

    Part Number AL240
    $6.19
    Add to
Please email or call us +44 (0)1590 681259 for sprockets for this chainsaw
