Fits the following chainsaws:

ECHO GROUP 1 [YOU MUST HAVE A 3/8 LO PRO DRIVE SPROCKET OR DRIVE RIM]

CS-260T|CS-260 TES|CS-270 WES|CS-270 TES|CS-271T|CS-280E|CS-280T|CS-280 WES|CS-280 TES|CS-281 TES|CS-281 WES|CS-3510ES|CS-3510L|CS-350 WES|CS-355T|CS-360T|CS-360 WES|CS-360 TES|CS-361 TES|CS-361 WES|CS-362 TES|CS-362 WES|DCS-1600|DCS-310|DCS-3500|CS-4400

CS-285EVL|CS-2800|CS-290EVL|CS-27 WES|CS-2900|CS-300|CS-300EVL|CS-310|CS-310ES|CS-315|CS-320EVL|CS-330|CS-330EVL|CS-352ES|CS-301|CS-305|CS-341|CS-346|CS-320T|CS-320 TES|CS-328|CS-340|CS-345|CS-350|CS-350T|CS-350 TES|CS-351|CS-360EVL|CS-370|CS-3000|CS-3050|CS-3400|CS-3450|CS-3500|CS-400|E155|ECS150|ECS1850FT|S2000|S2600|S3000|S3400


DOLMAR GROUP 1 [YOU MUST HAVE A 3/8 LO PRO DRIVE SPROCKET OR DRIVE RIM]

101|102|103|104|105|106|108|ES37|ES125

STIHL GROUP 1 AND 2 [YOU MUST HAVE A 3/8 LO PRO DRIVE SPROCKET OR DRIVE RIM]

009, 010, 011, 012, 017, MS170, MS171, 018, MS180, MS181, 019, MS190, MS191, MS192, MS193, 020, MS200, MS201, 021, 022, MS210, MS211, 019T, MS190T, MS191T, MS192T, MS193T, 020T, MS200T,, MS201T, HT70, HT75, HT100, HT101, HT130, HT131, E140, E160, E180, MSE140, MSE160, MSE180, MSE200


HUSQVARAN GROUP 1,2 AND 3 [YOU MUST HAVE A 3/8 LO PRO DRIVE SPROCKET OR DRIVE RIM]

16, 33, 34, 35, 36, 37, 38, 41, 120, 120i, 120 MkII, 130, 135, 135 MkII, 136, 137, 235, 236, 315, 316, 318, 320, 321, 333, 334, 335, 336, 338, 335XPT, 338XPT, 540XP, 540XP MkII

T540XP, T435XP, T335XPT, T338XPT, T536Li, 327P4, 321 EL, 420 EL

39, 40, 42, 44, 45, 49, 50, 51, 55, 57, 133, 134, 142, 154, 234, 235, 238, 240, 242, 246, 254, 257, 261, 262, 339, 340, 345XP, 346XP, 350, 351, 353, 355, 357, 359, 360, 362XP, 455, 460, 545, 545 MkII, 550XP, 550XP MkII, 550XP TrioBrake, 550XP MkII, 550XPG MkII, 555, 560XP, 560XPG


HOMELIGHT GROUP 1 [YOU MUST HAVE A 3/8 LO PRO DRIVE SPROCKET OR DRIVE RIM]

20|20AV|23AV|27|3300|3314|3316|3318|3350|3550|3800|3850|4500|4550|D3300|D3350B|D3850|D3850B|I3350B|PS33|RANGER|UT10514|UT10516|UT10517|UT10530|UT10530A|UT10901|UT10901A|UT10926|UT10947A|UT10947D|UT10947E|UT10974A|UT43100|UT43120|Z3850

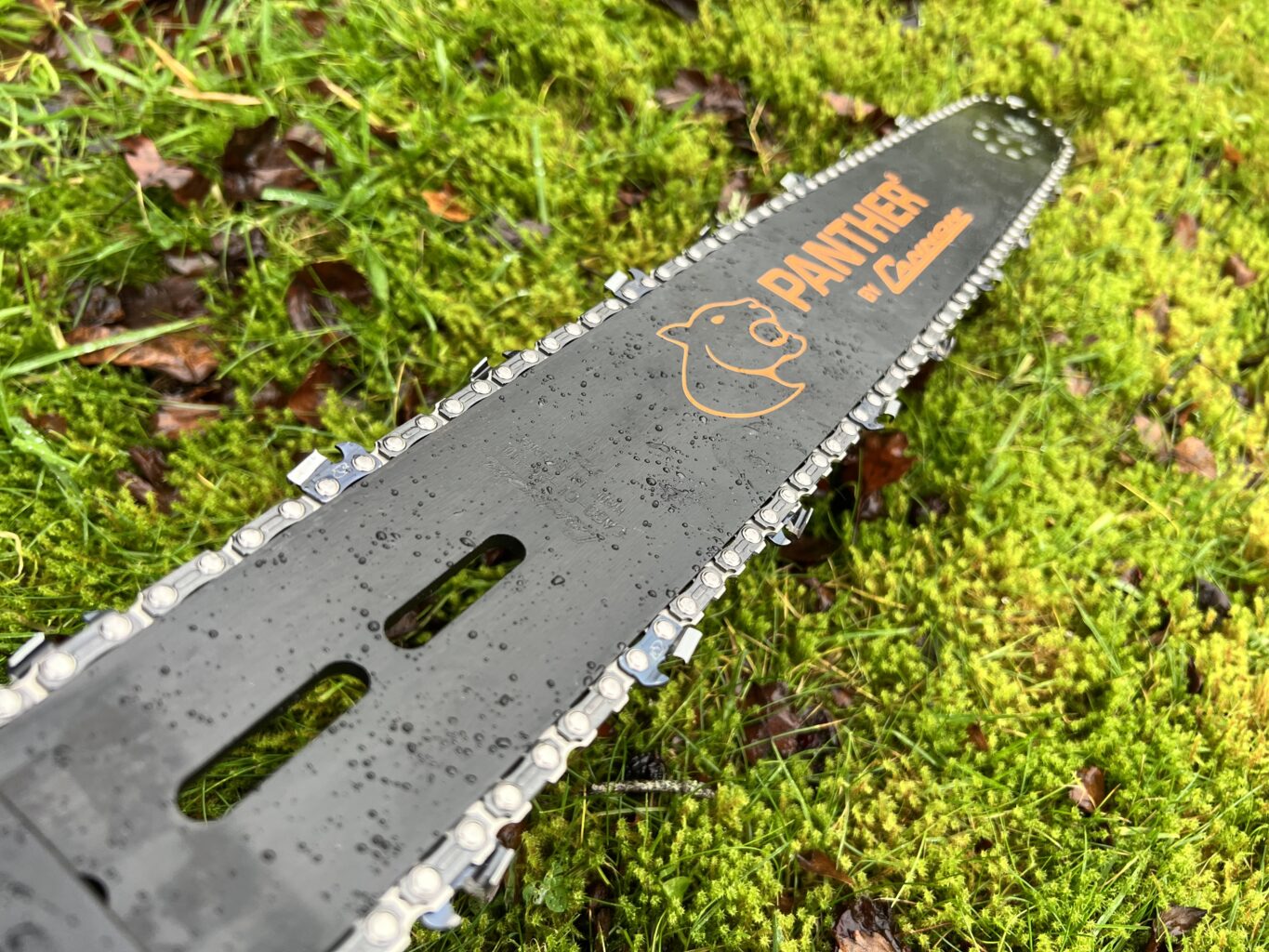

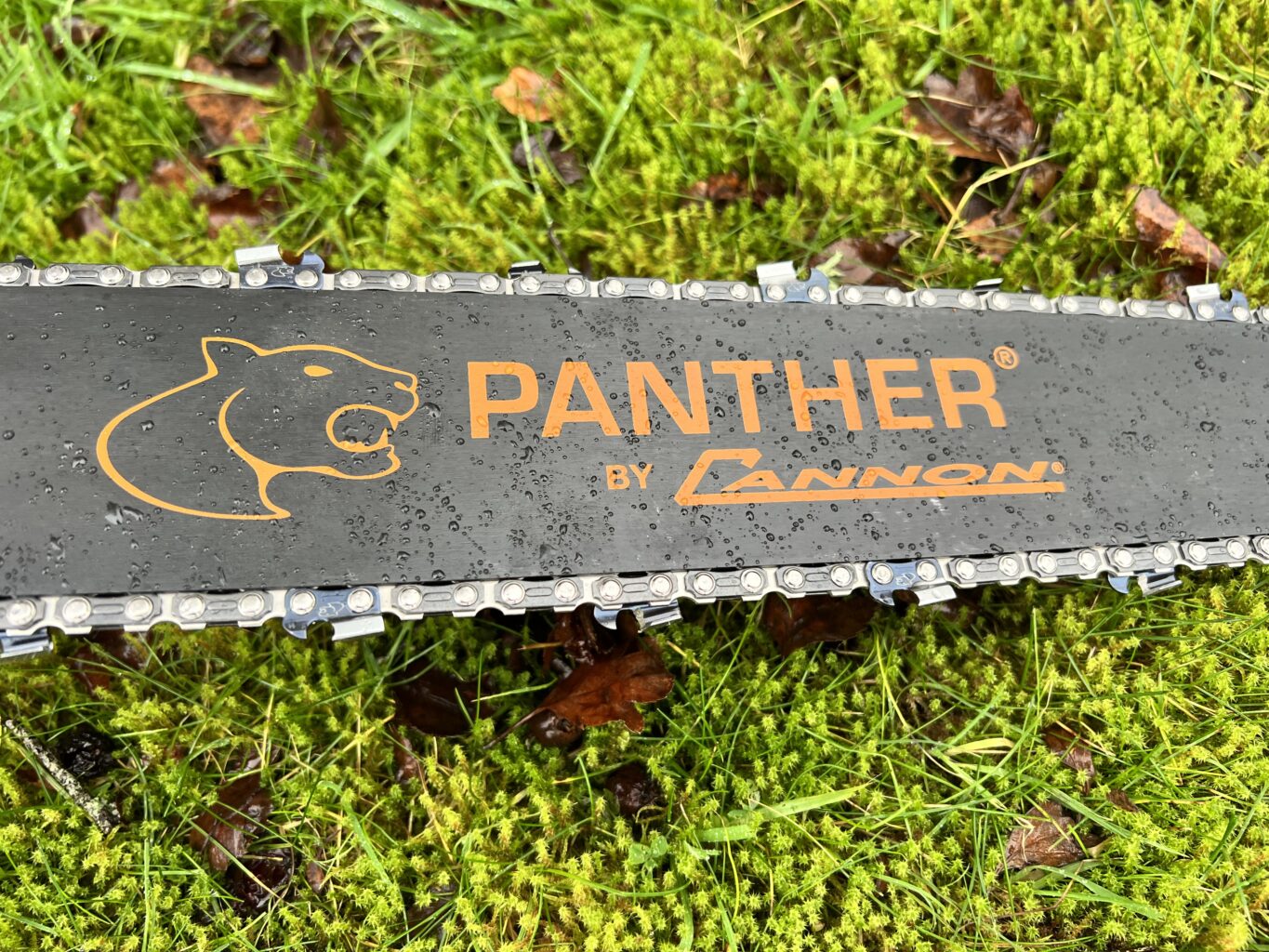

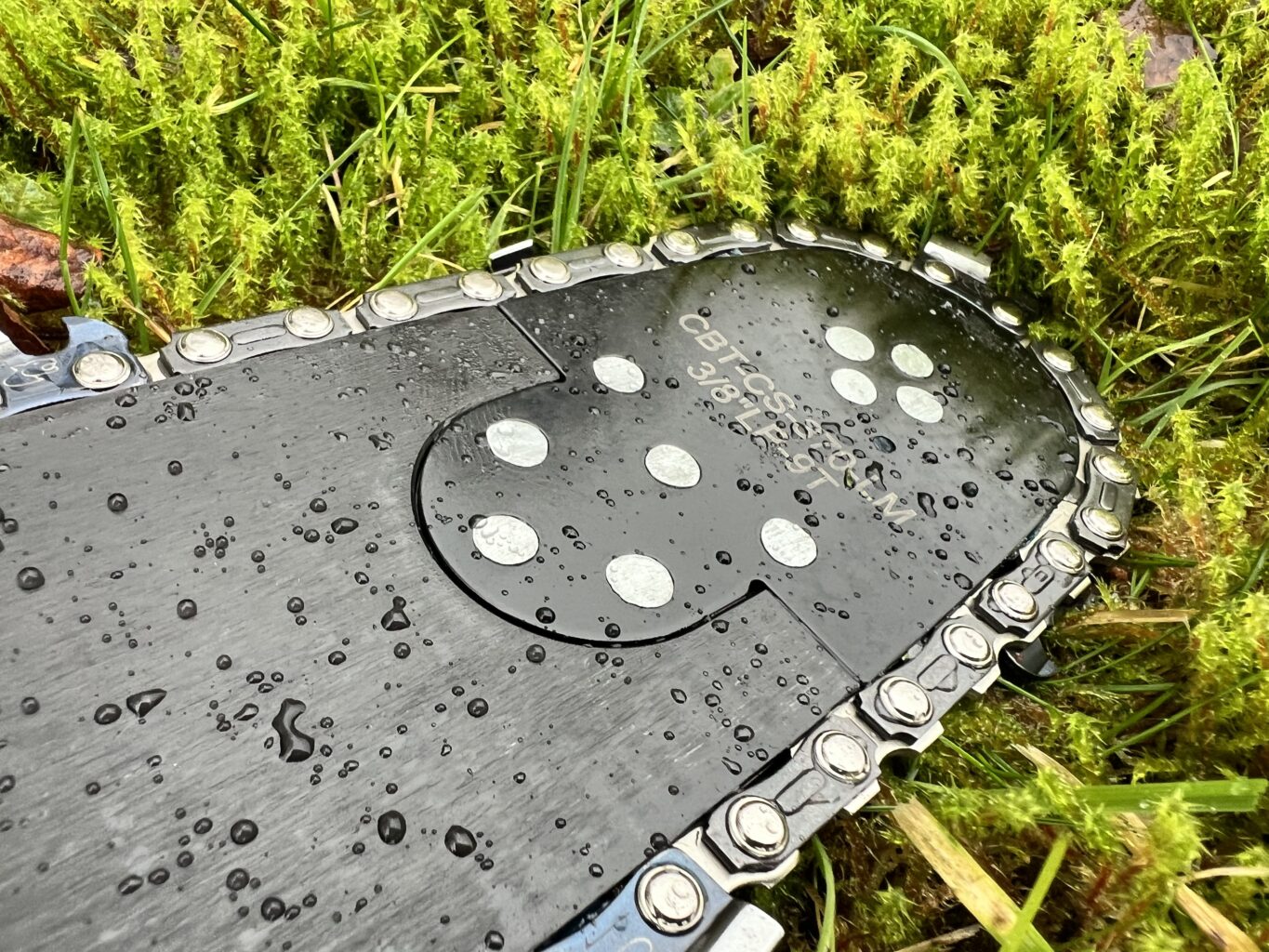

[C1-NS] CAG3-C1-20-50-3LM Cannon Double Slotted Bar 20″[50cm] 3/8 Lo Pro .050 72 drive links

$226.17

Add to
Stock 56
Part Number CAG3-C1-20-50-3LM
Weight 847g
Part Number CAG3-C1-20-50-3LM Categories: , ,
Durability
Stiffness
Cut speed




This listing is for the bar only.

This is a new bar that allows you to run a longer set up on smaller saws for milling. Use the Panther full skip ripping chain to allow better chain speed. Can you use this bar for normal type cross cutting as well? Yes you can.

Bars are slotted for Panther Cub but this does not effect general use of cross cutting and non ripping sawing of timber.

A precision ground groove to within .002″ means straighter cuts. Each groove is individually centered for even rail wear and superior durability. This increases rail strength and reduces damage from pinches. Also, if the chain rides exactly square to the rail, the result is smoother and straighter cutting. Milling marks, commonly found in the competitions bars, are eliminated. Thus, the groove is tighter and sloppy chain travel occurs much less.

Cannon SuperBars have flame tempered rails that are hardened to 5 points more than the tie straps on the chain for much longer bar life. This hardening penetrates deep to allow for multiple bar repairs and rebuilds. With the chain running straight and true, the result is a faster and smoother cut.







  1. Starting to mill and not read our basic faq milling info? Click here straight away it’ll save you a lot of time and energy in the future.



Using a full chisel chain for ripping timber.
Have tried full chisel ripping timber and unless the timber is very soft ie. redwood soft, it seems to cause a lot of vibration. The manufacturers seem to agree on this point as all ripping chains are converted micro or semi chisel chain. So if you are going to adapt an existing chain don’t adapt a chisel style chain – yes you can make a chain into a ripping chain by making the angle 10 degrees.

Lo pro Ripping Chains

This is another potential internet rabbit hole to venture down only to emerge with more questions than you entered with 😉 But read below before buying/asking these questions.

Stihl 3614-PMX – this chain cuts beautifully out of the box to give a smooth and even board. Developed between Logosol and Stihl this chain is our favourite when it comes to milling timber on an oversize set up.

‘Special Picco longitudinal saw chain with narrow cut and high cutting performance, mainly for use in conjunction with longitudinal cutting devices as well as mobile small sawmills such as Logosol. This semi circular toothed chain is characterized by a low vibration level and soft cutting behaviour.’

Oregon 91R – Better suited for smaller milling rigs ie. 25″(61cm) and under. Depth gauges seem to be overly high to take as much of a ‘bite’ as the Stihl PMX chain.

‘Oregon 91R Low Profile Ripping Chains are specially designed for use with portable chainsaw mills and for all applications where cutting with the grain of the timber is required, rather than across it. Standard chassis and cutter parts are used, the cutter grinding angle is the only difference from standard chains.’

Granberg 3/8 lo pro – Granberg adapted ripping chain does work well however sometimes the adaptation to cutters can be fairly crude and it is more of a nuisance to sharpen.

Adapter scoring and clearing cutters enable a faster cut yet maintain a smooth cut face and smooth milling action’. Click here to see the Granberg Ripping Chains to find out more. But again it is not a wonderful chain that will solve all your slow milling issues – it is simply an adapter semi chisel chain.

Pros of lo pro ripping chain:

  • Takes a slightly narrower kerf (only 15% less than a 3/8 standard chain)
  • Used on a lot of mills as the best chain
  • Reduces strain on the powerhead
  • Increases milling speed by approx 20%

Cons of lo pro ripping:

  • Increased chain stretch even with Stihl PMX
  • More expensive
  • Chain has less strength than standard 3/8 and .404 – so hit something hard and there is more chance of chain breakage. Heavy handed operators will struggle as there is less margin for sharpening and milling errors
  • Less stay sharp ability than the larger chains – larger chains can take more punishment than lo pro chains

So in conclusion – lo pro milling increases milling speed and decreases kerf wastage however there is less margin for errors and as usual for all chainsaw milling your chain sharpening must be spot on. We use it on most of our set ups now.






Additional information

Weight 847 g

Chains that match

  • 4.0mm[5/32″] Diamond Coarse – Sharpens 3/8 Lo Pro and 1/4 Chains [New Style]

    Part Number DS G532CHPC-ES
    $15.08
    Add to
  • 4.0mm[5/32″]Diamond Fine – Sharpens 3/8 Lo Pro and 1/4 Chains [New Style]

    Part Number DS G532CHPF-ES
    $15.08
    Add to
  • Oregon wooden file handle

    534370 Oregon Wooden File Handle

    Part Number 534370
    $4.15
    Add to
  • 56050071027 Stihl Filing Pouch with 4.0mm[5/32″] Sharpens 1/4 & 3/8 Lo Pro Chains

    Part Number 56050071027
    $50.51
    Add to
  • Stihl 2 in 1 easy file 4mm(5/32")

    56057504303 Stihl 2 In 1 Easy File 4.0mm[5/32″] Sharpens 1/4 & 3/8 Lo Pro Chains

    Part Number 56057504303
    $74.32
    Add to
  • 56057504306 Stihl 2 In 1 Easy File 3.2mm[1/8"] Sharpens 1/4 .043 Picco Chain

    56057504306 Stihl 2 In 1 Easy File 3.2mm[1/8″] Sharpens 1/4 .043 Picco Chain

    Part Number 56057504306
    $74.32
    Add to
  • Stihl file holder and file 4mm(5/32")

    56057504327 Stihl File Holder + File 4.0mm[5/32″] Sharpens 1/4 & 3/8 Lo Pro Chains

    Part Number 56057504327
    $16.87
    Add to
  • Stihl wooden file handle

    8114907860 Stihl Wooden File Handle

    Part Number 08114907860
    $4.26
    Add to
  • A4.0 4.0mm[5/32″] Carbide Sharpening Burr – Sharpens 3/8 Lo Pro and 1/4 [Trial price]

    Part Number A4.0
    Original price was: $22.62.Current price is: $11.31. Out of Stock
  • G417-3 3x Stones Pack Granberg filing stones 4mm(5/32") (Copy)

    G417-3 3x Stones Pack Granberg filing stones 4.0mm[5/32″]

    Part Number G417-3
    $12.44
    Add to
  • LC10081-532 Vallorbe File Holder + File 4.0mm[5/32″] Sharpens 1/4 & 3/8 Lo Pro Chains

    Part Number LC10081-532
    $18.77
    Add to
  • LZ-4.0MM Lazy File 4.0mm[5/32″] Sharpens 1/4 & 3/8 Lo Pro Chains

    Part Number LZ-4.0MM
    $37.32 Out of Stock
  • Oregon 4.0mm[5/32″] Chainsaw Files x12 – Files 3/8 Lo Pro and 1/4 Chains

    Part Number 70504
    $27.33
    Add to
  • Oregon file holder and file 4mm(5/32")

    Oregon File Holder and File 3.2mm[1/8″] – Files 1/4 .032[1.1mm] Chains

    Part Number 647844
    $16.59
    Add to
  • Oregon file holder and file 4mm(5/32")

    Oregon File Holder and File 4.0mm[5/32″] – Files 3/8 Lo Pro and 1/4 Chains

    Part Number Q16265C
    $16.59
    Add to
  • Oregon Pouch with 4.0mm[5/32″] – Files 3/8 Lo Pro and 1/4 Chains

    Part Number 558488
    $28.18
    Add to
  • Panther Diamond 4.0mm[5/32″] Chainsaw File x1 – Files 3/8 Lo Pro and 1/4

    Part Number 4MM-532-DIA
    $11.31 Out of Stock
  • Vallorbe 4mm(5/32") chainsaw file

    Vallorbe 4.0mm[5/32″] Chainsaw Files x12 – Files 3/8 Lo Pro and 1/4 Chains

    Part Number LC10003-03-532
    $37.32
    Add to
  • Vallorbe plastic file handle with file angles

    Vallorbe Plastic File Handle with File Angles

    Part Number AL240
    $6.22
    Add to
Please email or call us +44 (0)1590 681259 for sprockets for this chainsaw
